The growing demand for efficient mineral processing has encouraged more mining companies to adopt advanced sorting technologies to improve resource recovery, reduce operating costs, and optimize production efficiency. However, selecting the right Ore Sorting Machine can be challenging because every mining operation has different material characteristics, processing conditions, and production goals. Choosing unsuitable equipment may result in unstable sorting performance, unnecessary investment, or reduced recovery rates.
An Ore Sorting Machine is designed to identify and separate valuable minerals from waste materials before further processing. By using advanced sensor-based ore sorting technology, the system detects differences in characteristics such as color, surface texture, density, and material composition. This allows mining operators to remove unwanted materials at an early stage, improving the quality of feed material and reducing the workload of downstream crushing and grinding processes.
For companies planning to invest in mineral sorting equipment, the key is not simply selecting the most advanced technology available. The right solution depends on how well the equipment matches the specific ore type, particle size, production capacity, and processing environment. A careful evaluation process helps mining operators achieve better long-term efficiency and maximize the value of their resources.

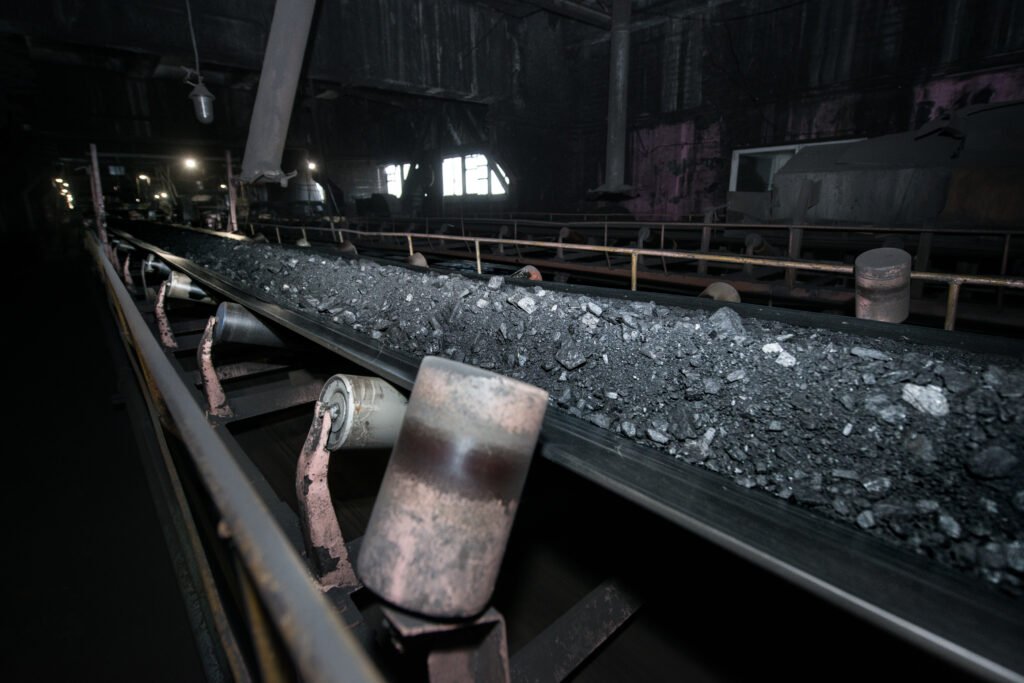

Understanding Ore Sorting Machine Technology and Its Role in Modern Mining
Traditional mineral processing methods often require significant energy, water, and processing capacity because all extracted materials enter the production line together. When waste rock is processed alongside valuable minerals, crushers, mills, and other downstream equipment must handle a larger amount of material than necessary.
An Ore Sorting Machine improves this process by introducing separation at an earlier stage. Instead of treating all extracted material equally, the system analyzes individual rocks or particles and separates them according to their detected characteristics. This pre-concentration approach allows mining operations to remove low-value materials before expensive processing steps.
Modern ore sorting technology combines advanced sensors, image analysis, and intelligent algorithms to achieve accurate material recognition. Optical sorting systems identify visible differences such as color, shape, and surface characteristics. Other sensor technologies analyze properties that cannot be recognized through visual inspection, providing additional solutions for complex mineral separation challenges.
The main advantages of using an ore sorting solution include:
- Improving the quality of material entering downstream processing
- Reducing unnecessary crushing and grinding of waste materials
- Lowering energy consumption and operating expenses
- Increasing valuable mineral recovery
- Supporting more sustainable mining practices
However, sorting performance depends heavily on selecting equipment that matches the application. Factors such as ore composition, particle size distribution, moisture conditions, and required throughput must be carefully considered before making an investment decision.

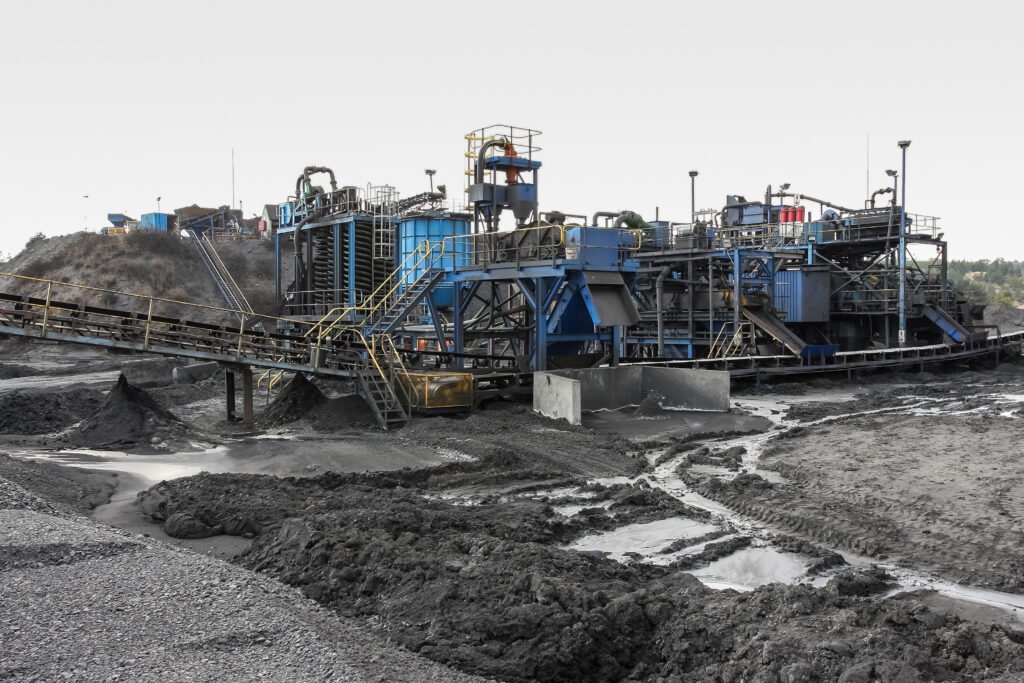

Evaluate Your Mining Application Before Choosing an Ore Sorting Machine
Before purchasing an Ore Sorting Machine, mining companies should first analyze their own production requirements. A proper evaluation helps determine which sorting technology, equipment configuration, and processing approach can deliver the best results.
Unlike standard industrial equipment, ore sorting systems interact directly with natural mineral variations. Even materials from the same mine may have differences in color, texture, density, or composition depending on extraction location and processing stage.
A complete evaluation should include:
Ore Characteristics and Mineral Composition
The type of ore being processed is the first factor to consider. Different minerals have different physical and chemical properties, which directly affect sorting performance.
Some materials have clear visual differences between valuable minerals and waste rock, making optical sorting effective. Other applications require advanced detection methods because the target material and unwanted materials may appear similar on the surface.
Mining operators should evaluate:
- Mineral type and grade variation
- Differences between valuable materials and waste rock
- Surface appearance and internal characteristics
- Presence of impurities
- Consistency of raw material quality
Understanding these characteristics helps determine which sensor technology can provide reliable separation results.
Particle Size Distribution
Particle size is another critical factor when selecting an ore sorting solution. Sensor performance, feeding stability, and mechanical design are all influenced by the size of incoming materials.
Fine mineral particles require accurate detection and stable material presentation because small differences can affect sorting results. Larger rock particles require stronger mechanical structures and reliable detection across a wider surface area.
Before selecting equipment, mining operators should confirm:
- Raw material size after crushing
- Required sorting size range
- Screening and classification requirements
- Expected variation during production
Matching the equipment with the actual particle size range helps maintain stable operation and prevents unnecessary material loss.
Processing Capacity and Production Requirements
Mining operations typically run continuously, making processing capacity a key consideration. The selected Ore Sorting Machine should match the throughput requirements of the entire production line.
A system with insufficient capacity may become a production bottleneck, while oversized equipment may increase investment costs without creating additional benefits.
When evaluating capacity, consider:
- Required hourly processing volume
- Current production demand
- Future expansion plans
- Material feeding stability
- Integration with existing processing equipment
The best solution balances throughput, sorting accuracy, recovery performance, and operating efficiency.
Choosing the Right Ore Sorting Technology for Different Applications
One of the most important decisions when selecting an Ore Sorting Machine is choosing the appropriate detection technology. Different sorting technologies are designed to solve different separation challenges, and the best choice depends on the physical characteristics of the material, the required separation target, and the overall processing workflow.
Optical Sorting Technology
Optical sorting is widely used when valuable minerals and waste materials have visible differences. High-resolution cameras capture information from the material surface, while intelligent software analyzes characteristics such as color, shape, and texture.
This technology is suitable for applications where surface appearance provides reliable sorting information. It offers advantages such as fast response, flexible application, and efficient removal of visible impurities.
For many industrial minerals and non-metallic mineral applications, optical sorting provides an effective method for improving material quality and reducing unwanted waste. It is especially useful when the difference between accepted and rejected materials can be clearly identified through surface characteristics.
XRT Sorting Technology
XRT (X-ray Transmission) sorting technology identifies materials based on differences in internal density and structural characteristics. Unlike optical methods that mainly analyze surface information, XRT can detect variations inside the material.
This makes XRT sorting valuable for applications where valuable minerals and waste materials have similar external appearances but different internal properties.
When considering XRT-based sorting, mining operators should evaluate:
- The density difference between target minerals and waste materials
- Required recovery rate
- Material size range
- Processing conditions
By identifying materials according to internal characteristics, XRT technology can support more accurate separation in complex mineral processing applications.
XRF Sorting Technology
XRF (X-ray Fluorescence) sorting technology analyzes the elemental composition of materials. Instead of relying only on appearance or density differences, XRF detects chemical characteristics that help distinguish different mineral components.
This technology can be considered for applications where elemental differences are the main separation factor. It provides additional possibilities for mineral classification and quality control in demanding processing environments.
The choice between optical sorting, XRT sorting, and XRF sorting should always be based on the actual separation challenge. The most advanced technology is not necessarily the best choice unless it matches the characteristics of the ore.
How to Select an Ore Sorting Machine Based on Material Size and Processing Conditions
After determining the suitable sorting technology, mining operators need to evaluate how the equipment fits into their existing production process. A reliable Ore Sorting Machine should not only provide accurate detection but also maintain stable operation under real working conditions.
Factors such as particle size, moisture content, feeding method, and production environment can directly influence sorting performance. Proper equipment selection helps maintain consistent material flow, reduce valuable mineral loss, and improve overall processing efficiency.
Selecting Equipment According to Particle Size
Different material sizes require different sorting approaches. Fine particles, medium-sized materials, and large rocks each create different technical challenges.
For fine mineral materials, the main challenge is identifying small differences between particles while maintaining stable feeding. High-resolution detection and accurate material presentation are important because small variations can influence sorting results.
For medium-sized particles, the sorting process requires a balance between detection accuracy and processing capacity. Many mining operations place sorting equipment after crushing and screening stages, allowing waste materials to be removed before further processing.
For larger rock particles, the equipment must handle higher impact forces and larger material surfaces. Large-particle sorting is often used for early-stage pre-concentration, helping reduce the amount of waste entering energy-intensive crushing and grinding processes.
Before selecting an Ore Sorting Machine, companies should confirm:
- The incoming particle size range
- Required output material specifications
- Whether screening or classification is needed
- Expected changes in material size during operation
A machine designed for the correct particle range can achieve better stability, higher sorting efficiency, and lower material loss.
Dry or Wet Ore Sorting Machine: How to Choose the Right Solution
The processing condition of the material is another important factor when choosing a sorting system. In many sensor-based ore sorting applications, dry sorting is commonly preferred because dry particles usually provide better material presentation and more stable detection conditions.
Dry Ore Sorting Applications
Dry sorting is widely used when materials can be processed without additional water treatment. It simplifies the processing workflow and helps mining companies reduce water consumption.
The main advantages of dry sorting include:
- Lower water usage
- Simpler process design
- Easier equipment integration
- Reduced environmental impact
Dry sorting is suitable for materials with good flow characteristics that can move individually through the detection area. Proper feeding and material separation are important because overlapping or sticking particles may reduce sorting accuracy.
Wet Ore Sorting Considerations
Some mining processes involve washing or moisture-containing materials before sorting. In these situations, operators must carefully evaluate whether wet conditions will affect detection and material movement.
Excessive moisture may influence:
- Particle movement on the belt
- Material separation efficiency
- Sensor recognition stability
- Equipment maintenance requirements
For materials with high moisture content or strong adhesion characteristics, testing is recommended before selecting a sorting approach.
The decision between dry and wet sorting should be based on material behavior, processing requirements, and the expected operating environment rather than convenience alone.
Matching Ore Sorting Machine Features With Mining Requirements
A modern Ore Sorting Machine must provide reliable performance in demanding mining environments. Beyond detection accuracy, buyers should evaluate equipment design, operational stability, and long-term maintenance requirements.
Intelligent Feeding System
Stable feeding is essential for accurate sorting. If materials overlap or move unevenly, sensors may not collect complete information from individual particles, reducing separation efficiency.
An optimized feeding system helps:
- Improve material distribution
- Reduce particle overlap
- Maintain consistent flow
- Increase sorting stability
AI-Based Recognition and Data Processing
Mining materials naturally vary, creating challenges for automated recognition. AI-based algorithms help analyze large amounts of sorting data and improve decision-making under different material conditions.
By combining sensor information, image processing, and intelligent algorithms, modern sorting systems can adapt to changing material characteristics and maintain consistent performance.
Wear Resistance and Long-Term Reliability
Mining environments involve dust, vibration, continuous operation, and abrasive materials. Equipment durability directly affects production efficiency and maintenance costs.
When evaluating a sorting system, buyers should consider:
- Wear-resistant components
- Maintenance accessibility
- Stable operation during long working hours
- Technical support availability
A reliable sorting solution reduces downtime and provides better long-term value throughout the equipment lifecycle.
Common Mistakes When Choosing an Ore Sorting Machine
Selecting the right Ore Sorting Machine requires more than comparing technical specifications or focusing on a single performance indicator. Many mining companies make purchasing decisions based on limited information, which can lead to equipment that does not fully match their actual production requirements.
Understanding common selection mistakes can help mining operators reduce investment risks and choose a sorting solution that delivers stable performance over the long term.
Choosing Equipment Without Material Testing
Every mining operation has unique material characteristics. Even ores from the same geological area may show differences in composition, appearance, particle size distribution, and sorting behavior.
Selecting equipment without evaluating actual material samples can result in unsuitable sorting performance. Before making a final decision, companies should analyze:
- Whether the selected sorting technology matches the ore characteristics
- Expected separation performance
- Recovery rate requirements
- Appropriate operating parameters
Material testing provides valuable information for determining whether optical sorting, XRT sorting, XRF sorting, or another approach is suitable for the application.
A professional evaluation before purchase helps reduce uncertainty and ensures that the selected equipment can perform effectively in real production conditions.
Ignoring Future Production Requirements
Mining projects often develop over many years, and production requirements may change over time. Selecting equipment based only on current capacity may limit future expansion opportunities.
Before investing in an Ore Sorting Machine, companies should consider:
- Possible increases in material throughput
- Changes in ore characteristics
- Expansion of processing facilities
- Future production targets
A flexible sorting solution can help mining operations adapt to changing requirements and maintain efficiency throughout the project lifecycle.
Focusing Only on Initial Equipment Cost
The purchase price is an important consideration, but it should not be the only factor when evaluating mineral sorting equipment.
A lower-cost solution may create additional expenses if it requires frequent maintenance, has unstable performance, or results in higher material loss.
A complete investment evaluation should include:
- Initial equipment investment
- Energy consumption
- Maintenance requirements
- Operating stability
- Expected improvement in recovery and efficiency
The most suitable sorting solution is usually the one that provides the best overall value rather than the lowest initial price.
How to Improve the Efficiency of an Ore Sorting Machine After Installation
Choosing the right equipment is only the first step. Proper operation and management also influence the long-term performance of an Ore Sorting Machine.
Mining companies can improve sorting efficiency through several practices:
Maintain Stable Material Feeding
Consistent material flow allows sensors to capture clearer information from each particle. Uneven feeding, excessive overlap, or unstable flow conditions may reduce sorting accuracy.
Regular inspection of feeding systems and material preparation processes helps maintain reliable operation.
Optimize Sorting Parameters Regularly
Ore characteristics can change during mining operations. Regular adjustment of sorting parameters helps the equipment adapt to different material conditions.
Optimization may include:
- Detection sensitivity adjustments
- Sorting criteria updates
- Material flow improvements
- Operating parameter evaluation
Perform Regular Maintenance
Mining environments can be demanding, with dust, vibration, and abrasive materials affecting equipment performance.
Regular maintenance helps:
- Reduce unexpected downtime
- Maintain detection accuracy
- Extend equipment service life
- Improve production reliability
A well-maintained sorting system can provide consistent performance throughout continuous operation.
FAQs About Choosing an Ore Sorting Machine
1. What factors should I consider before buying an Ore Sorting Machine?
The most important factors include ore characteristics, particle size, processing capacity, sorting technology, moisture conditions, and production requirements. The right equipment should match the actual mining application rather than simply provide the highest technical specifications.
Before purchase, companies should evaluate their material characteristics, production goals, and existing processing workflow to determine the most suitable sorting approach.
2. What is the difference between optical sorting, XRT sorting, and XRF sorting?
Optical sorting identifies materials based on visible characteristics such as color, shape, and surface texture. It is suitable when valuable minerals and waste materials have clear visual differences.
XRT sorting detects differences in internal density and structure, making it useful when materials have similar surface appearances but different internal properties.
XRF sorting analyzes elemental composition and can support applications where chemical differences are important for mineral classification.
The best technology depends on the specific separation challenge of the ore.
3. Can one Ore Sorting Machine process different types of minerals?
Many modern sorting systems can support different mineral applications, but performance depends on the physical characteristics of each material.
Different ores may require different sensor technologies, operating parameters, or processing configurations. A professional application evaluation is recommended before using one system for multiple materials.
4. Is dry sorting better than wet sorting?
Neither method is universally better. The appropriate choice depends on the material properties and processing conditions.
Dry sorting is commonly preferred in sensor-based ore sorting because dry materials generally provide better particle presentation and more stable detection conditions.
Wet sorting may be considered when the material requires washing or when moisture conditions are part of the existing process. However, moisture levels and material behavior should be carefully evaluated before selection.
5. How much does an Ore Sorting Machine cost?
The cost of an Ore Sorting Machine depends on multiple factors, including sorting technology, processing capacity, material characteristics, system configuration, and integration requirements.
Instead of focusing only on purchase price, mining companies should evaluate the total operating value, including energy consumption, maintenance requirements, recovery improvement, and long-term production benefits.
6. How do I know which Ore Sorting Machine is suitable for my mine?
The most reliable method is to evaluate the specific characteristics of your material and production process.
Important information includes:
- Ore type
- Particle size range
- Expected processing capacity
- Separation target
- Existing production workflow
Based on these factors, a suitable sorting technology and equipment configuration can be recommended.
7. Can an Ore Sorting Machine be integrated into an existing processing line?
Yes. Many sorting systems are designed to work with existing crushing, screening, and mineral processing workflows.
Before integration, companies should evaluate available installation space, material flow, feeding conditions, and communication with existing equipment to ensure smooth operation.
Choose the Right Ore Sorting Machine for Efficient Mineral Processing
Selecting the right Ore Sorting Machine is an important investment decision that can directly influence mining efficiency, operating costs, and resource recovery. The best solution is not determined by a single specification but by how well the equipment matches the ore characteristics, particle size, processing conditions, and long-term production goals.
A successful sorting strategy begins with understanding the material, selecting the appropriate technology, and evaluating the complete production workflow. By avoiding common purchasing mistakes and focusing on long-term performance, mining companies can achieve more efficient mineral processing and better resource utilization.
PolySorter provides professional ore sorting solutions based on material characteristics, particle size requirements, and processing conditions. Our team can help evaluate your application, analyze sorting requirements, and recommend a suitable approach for improving sorting efficiency and production performance.
Contact PolySorter today to discuss your ore sorting requirements and explore a customized solution for your mining operation.
